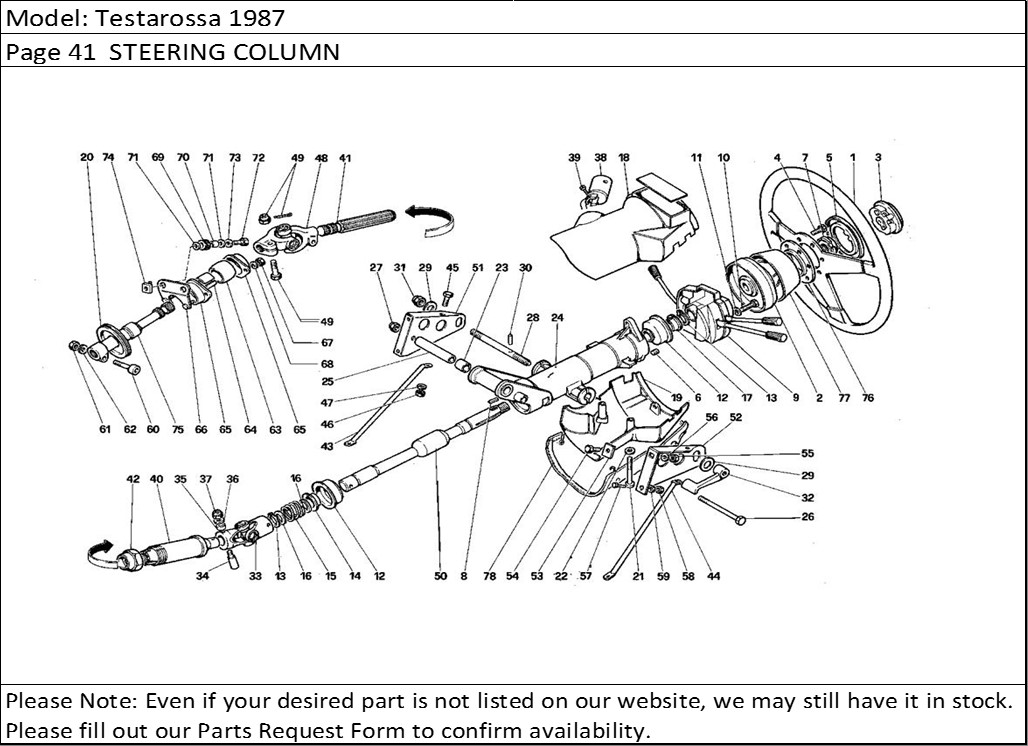

Testarossa 1987 Page 41 STEERING COLUMN
Product Description
Testarossa 1987 Page 41 STEERING COLUMN
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 119036 | Steering wheel | 1 |
| 2 | 122244 | Steering wheel hub, complete | 1 |
| 3 | 101071 | Horn push button with holder | 1 |
| 4 | 111189 | Steering wheel securing screw | 6 |
| 5 | 119040 | Ring nut to cover screws | 1 |
| 6 | 13525170 | Heli-coil | 2 |
| 7 | 106082 | Upper shaft securing ring nut | 1 |
| 8 | 101106 | Key | 1 |
| 9 | 121561 | Main switching unit | 1 |
| 10 | 10390211 | Screw | 2 |
| 11 | 12601171 | Washer | 2 |
| 12 | 121576 | Bearing | 2 |
| 13 | 11066876 | Seeger ring | 2 |
| 14 | 121577 | Bearing retaining ring | 1 |
| 15 | 121578 | Bearing rataining spring | 1 |
| 16 | 121579 | Washer | 2 |
| 17 | 125361 | Bearing retaining ring | 1 |
| 18 | 121580 | Upper steering column cover | 1 |
| 19 | 121581 | Lower steering column cover | 1 |
| 20 | 112466 | Extension wire holder | 1 |
| 21 | 13275217 | Screw | 2 |
| 22 | 12601171 | Washer | 2 |
| 23 | 121588 | Bushing | 2 |
| 24 | 122193 | Steering columm support | 1 |
| 25 | 121589 | Pipe for steering wheel adjusting pivot | 1 |
| 26 | 16045021 | Screw | 1 |
| 27 | 16104411 | Nut | 1 |
| 28 | 120988 | Spindle for level | 1 |
| 29 | 114865 | Washer | 2 |
| 30 | 10333610 | Pin | 1 |
| 31 | 16105111 | Self-locking nut | 1 |
| 32 | 121590 | Shaft locking leverNot for U7 | 1 |
| 32 | 131487 | Shaft locking leverFor U7 | 1 |
| 33 | 112572 | Upper joint | 1 |
| 34 | 112573 | Taper pin | 1 |
| 35 | 112571 | Spacer | 2 |
| 36 | 10519401 | Washer | 2 |
| 37 | 12574221 | Nut | 2 |
| 38 | 121776 | Diode For parts N. 121610 - 122470 | 1 |
| 38 | 129115 | Anti-thelf device For US and SA, after exhaustion of P.N. 122470 | 1 |
| 38 | 121610 | Anti-theif device Not for US - SA, until exhausted | 1 |
| 38 | 122470 | Anti-thelf device For US and SA, until exhausted | 1 |
| 38 | 129116 | Anti-theif device Not for US - SA, after exhaustion of P,N. 121610 | 1 |
| 39 | 121611 | Screw | 1 |
| 40 | 116484 | Guide pipe | 1 |
| 41 | 108557 | Lower steering shaft | 1 |
| 42 | 106870 | Adjusting nut | 1 |
| 43 | 123382 | Right tie rod | 1 |
| 44 | 123383 | Left tie rod | 1 |
| 45 | 10902121 | Screw | 4 |
| 46 | 15896211 | Nut | 4 |
| 47 | 106850 | Washer | 4 |
| 48 | 103343 | Lower jointAs alternate use PN 108362 | 1 |
| 49 | 105032 | Assy For fitting of joint PN 103343 | 1 |
| 50 | 125359 | Upper steering shaft | 1 |
| 51 | 120990 | Right bracket | 1 |
| 52 | 120991 | Left bracket | 1 |
| 53 | 124826 | Safety plate | 1 |
| 54 | 10922121 | Screw | 2 |
| 55 | 15896211 | Nut | 2 |
| 56 | 106850 | Washer | 2 |
| 57 | 16043221 | Screw | 2 |
| 58 | 16100811 | Nut | 2 |
| 59 | 106852 | Washer | 2 |
| 60 | 125518 | Screw | 1 |
| 61 | 125519 | Nut | 1 |
| 62 | 12601271 | Washer | 1 |
| 63 | 103297 | Ball | 1 |
| 64 | 103370 | Bushing | 1 |
| 65 | 103292 | Flange | 2 |
| 66 | 123516 | Extension support | 1 |
| 67 | 12574211 | Nut | 2 |
| 68 | 10519401 | Washer | 2 |
| 69 | 103549 | Pad | 2 |
| 70 | 103550 | Bushing | 2 |
| 71 | 12640601 | Washer | 4 |
| 72 | 10902721 | Screw | 2 |
| 73 | 106850 | Washer | 2 |
| 74 | 60659100 | Caged nut | 2 |
| 75 | 123517 | Steering box extension | 1 |
| 76 | 123099 | Horn retaining plate | 1 |
| 77 | 123098 | Hub cover | 1 |
| 78 | 61535700 | Steering columm coverUntil car No. 67077 | 1 |
