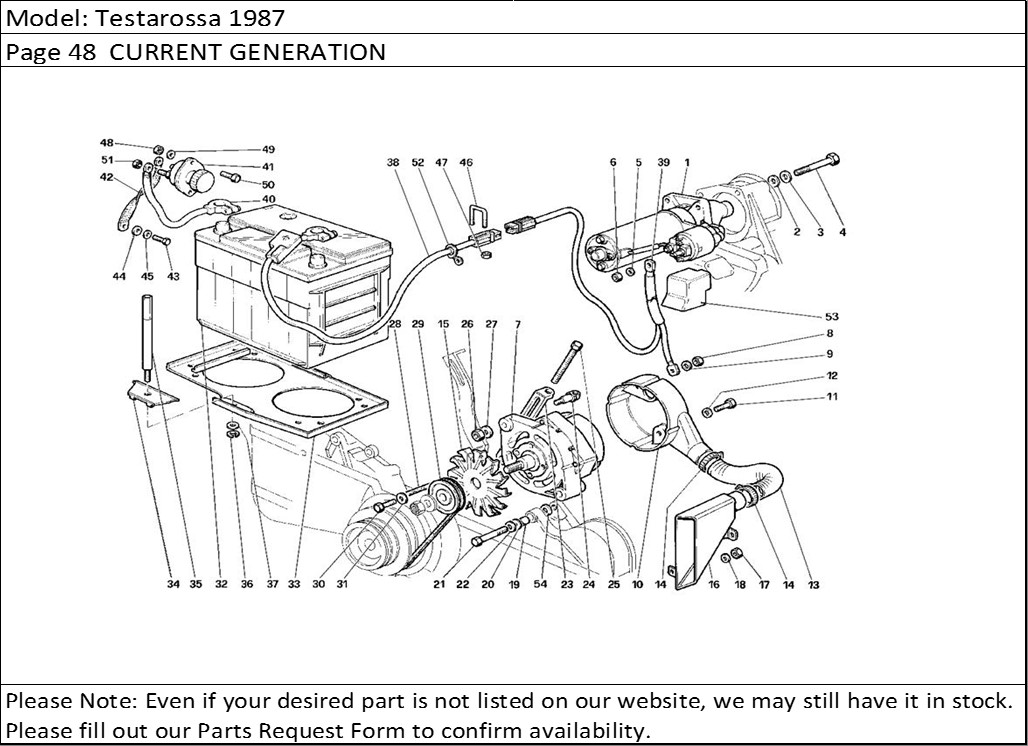

Testarossa 1987 Page 48 CURRENT GENERATION
Product Description
Testarossa 1987 Page 48 CURRENT GENERATION
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 120967 | Starter motor | 1 |
| 2 | 104189 | Starter securing screw | 3 |
| 3 | 11198071 | Washer | 3 |
| 4 | 10519621 | Flat washer | 3 |
| 5 | 102683 | Spacer | 1 |
| 6 | - | Nut | 1 |
| 7 | 121281 | Alternator 108A For A1 until exhausted | 1 |
| 7 | 125891 | Alternator 120A For US-CH-SA - B1 and after exhaustion of PN 121281 | 1 |
| 8 | 10725911 | Alternator cables securing nut | 1 |
| 9 | 12601271 | Washer | 1 |
| 10 | 125574 | Air conveyorFor alternator PN. 125891 | 1 |
| 10 | 123278 | Air conveyorFor alternator PN. 121281 | 1 |
| 11 | 123295 | Screw | 1 |
| 12 | 12601471 | Washer | 1 |
| 13 | 123296 | Conveyor flexible hose | 1 |
| 14 | 12177090 | Clamp | 2 |
| 15 | 121282 | Fan | 1 |
| 16 | 124178 | Air-delivery hose | 1 |
| 17 | 12575411 | Nut | 1 |
| 18 | 10615476 | Washer | 1 |
| 19 | 123172 | Bushing on R.H. crankcase cover | 1 |
| 20 | 12638601 | Washer | 1 |
| 21 | 15971821 | Screw | 1 |
| 22 | 106853 | Washer | 1 |
| 23 | 123173 | Alternator bracket | 1 |
| 24 | 123193 | Threaded pin | 1 |
| 25 | 125668 | Voltage regulating screw | 1 |
| 26 | 16104111 | Self-locking nut | 1 |
| 27 | 14496501 | Washer | 1 |
| 28 | 127132 | Alternator control belt Continental | 1 |
| 29 | 121260 | Pulley For A1 (Up to engine No. 100) | 1 |
| 29 | 125910 | PulleyFor A1 (From engine No 101), B1-US-CH-SA | 1 |
| 30 | 15970921 | Braket securing screw | 1 |
| 31 | 106853 | Washer | 1 |
| 32 | 118060 | 1 2 V - 66 Ah - 300 A battery | 1 |
| 33 | 125333 | Battery support plate | 1 |
| 34 | 100839 | Battery securing braket | 1 |
| 35 | 125330 | Pin | 1 |
| 36 | 11065676 | Seeger ring | 1 |
| 37 | 12642721 | Washer | 1 |
| 38 | 123674 | Battery positive cable | 1 |
| 39 | 123675 | Starter and alternator positive cableNot for B1 and U7 | 1 |
| 39 | 131162 | Starter and alternator positive cableFor B1 and U7 | 1 |
| 40 | 123676 | Plait from battery to switch | 1 |
| 41 | 123677 | Battery disconnecting switch | 1 |
| 42 | 123678 | Earthing plait for batt. disconn. | 1 |
| 43 | 16043121 | Screw | 1 |
| 44 | 10519601 | Washer | 1 |
| 45 | 10615679 | Tab washer | 1 |
| 46 | 116591 | Pos. cable fastening U bolt | 1 |
| 47 | 12574011 | Nut | 2 |
| 48 | 12574011 | Nut securing batt. disconn. switch | 2 |
| 49 | 14497701 | Washer | 2 |
| 50 | 14476078 | Nut | 2 |
| 51 | 12575411 | Nut | 1 |
| 52 | 10441490 | Cable support bracket | 2 |
| 53 | 126505 | Protection | 1 |
| 54 | 121678 | Washer | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
