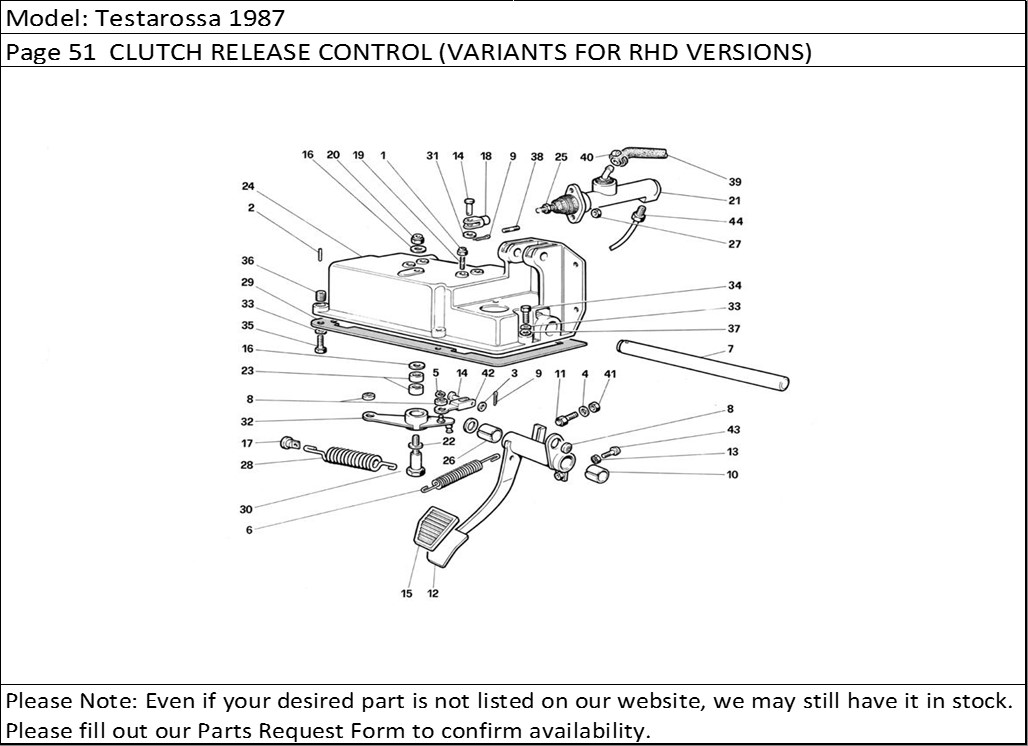

Testarossa 1987 Page 51 CLUTCH RELEASE CONTROL (VARIANTS FOR RHD VERSIONS)
Product Description
Testarossa 1987 Page 51 CLUTCH RELEASE CONTROL (VARIANTS FOR RHD VERSIONS)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 12574211 | Nut | 4 |
| 2 | 13942870 | Pin | 1 |
| 3 | 10519601 | Washer | 2 |
| 4 | 12601371 | Washer | 1 |
| 5 | 11065676 | Seeger ring | 1 |
| 6 | 104895 | Pedal return spring | 1 |
| 7 | 113831 | Pin for pedal support | 1 |
| 8 | 109407 | Ball joint | 3 |
| 9 | 10734201 | Split pin | 3 |
| 10 | 103163 | Bush | 2 |
| 11 | 114825 | Stop push rod | 1 |
| 12 | 119458 | Clutch pedal | 1 |
| 13 | 16102311 | Nut | 1 |
| 14 | 10050810 | Pin | 3 |
| 15 | 106949 | Pedal cover | 1 |
| 16 | 113500 | Washer | 2 |
| 17 | 114828 | Spring retaining pin | 1 |
| 18 | 10007871 | Fork | 1 |
| 19 | 11500121 | Stud securing windsh. wiper motor | 4 |
| 20 | 16105121 | Selflocking nut | 1 |
| 21 | 123416 | Master cylinder | 1 |
| 22 | 112126 | Shim | 1 |
| 23 | 115430 | Roller cage | 2 |
| 24 | 123472 | Pedal support | 1 |
| 25 | 16102311 | Lock nut | 1 |
| 26 | 113835 | Shim 1.3 mm. thick. (if required) | 1 |
| 26 | 106083 | Shim, 1.0 mm. thick. (if required) | 1 |
| 26 | 113833 | Shim, 1.1 mm. thick. (if required) | 1 |
| 26 | 113836 | Shim, 1.4 mm. thick. (if required) | 1 |
| 26 | 113834 | Shim, 1.2 mm. thick. (if required) | 1 |
| 27 | 16104111 | Nut | 2 |
| 28 | 114826 | Service spring | 1 |
| 29 | 119331 | Gasket | 1 |
| 30 | 114830 | Pin for relay lever | 1 |
| 31 | 12642701 | Washer | 1 |
| 32 | 124194 | Relay lever | 1 |
| 33 | 106852 | Washer | 5 |
| 34 | 16043821 | Screw | 3 |
| 35 | 16043421 | Screw | 2 |
| 36 | 13525870 | Heli-coil | 2 |
| 37 | 10519620 | Washer | 3 |
| 38 | 13543321 | Stud | 2 |
| 39 | 120929 | Feed pipe for clutch master cylinder | 1 |
| 40 | 12179190 | Clamp | 2 |
| 41 | 16100821 | Nut | 1 |
| 42 | 121209 | Fork | 1 |
| 43 | 123961 | Pedal travel adjusting push rod | 1 |
| 44 | 124841 | Clutch control hose | 1 |
