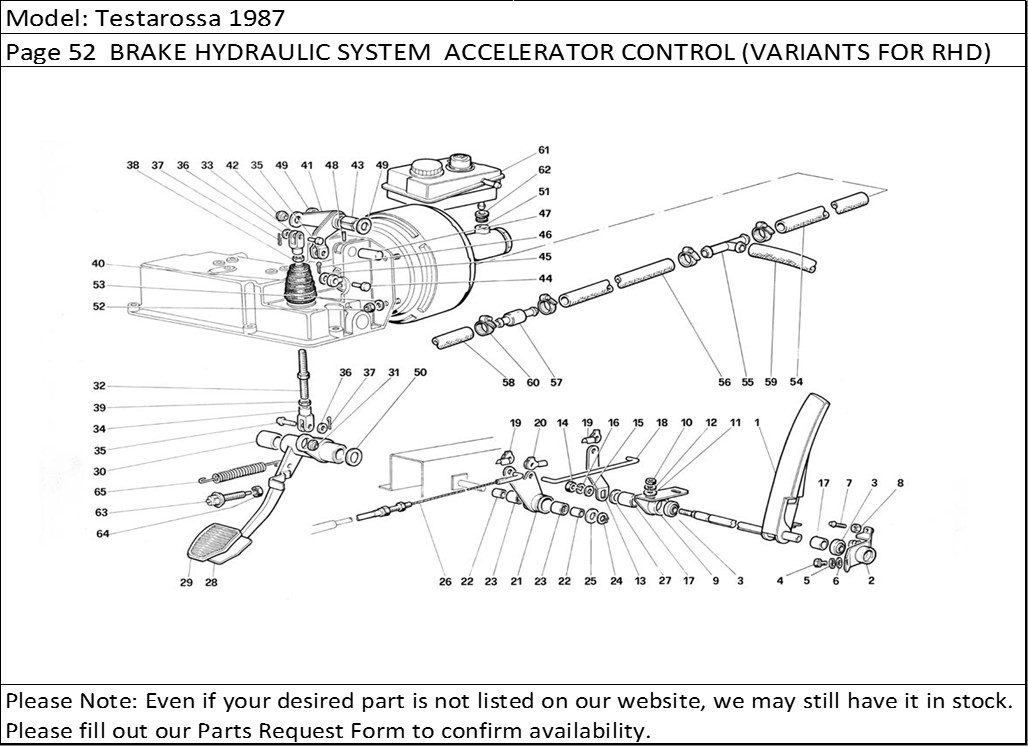

Testarossa 1987 Page 52 BRAKE HYDRAULIC SYSTEM ACCELERATOR CONTROL (VARIANTS FOR RHD)
Product Description
Testarossa 1987 Page 52 BRAKE HYDRAULIC SYSTEM ACCELERATOR CONTROL (VARIANTS FOR RHD)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 124996 | Accelerator pedal | 1 |
| 2 | 116526 | Pedal support | 1 |
| 3 | 122430 | Ball joint | 2 |
| 4 | 16043221 | Screw | 2 |
| 5 | 106852 | Spring washer | 2 |
| 6 | 10519601 | Washer | 2 |
| 7 | 100640 | Adjusting screw | 1 |
| 8 | 16102311 | Lock nut | 1 |
| 9 | 116528 | Support for relay lever | 9 |
| 10 | 15896211 | Nut | 2 |
| 11 | 12643701 | Washer | 2 |
| 12 | 106850 | Washer | 2 |
| 13 | 124997 | Accelerator control lever | 1 |
| 14 | 16100811 | Nut | 1 |
| 15 | 10519601 | Washer | 1 |
| 16 | 106852 | Washer | 1 |
| 17 | 117991 | Spacer | 2 |
| 18 | 124998 | Tie rod | 1 |
| 19 | 118550 | Fastener | 2 |
| 20 | 119551 | Fastener | 1 |
| 21 | 124999 | Relay lever | 1 |
| 22 | 125001 | Inner ring | 2 |
| 23 | 101677 | Roller cage | 2 |
| 24 | 11065676 | Circlip | 1 |
| 25 | 117311 | Washer | 1 |
| 26 | 125002 | Accelerator control cable | 1 |
| 27 | 105930 | Shim - 0.5 mm. thick | 1 |
| 27 | 105929 | Shim - 0.3 mm. thick | 1 |
| 27 | 105931 | Shim - 0.7 mm. thick | 1 |
| 28 | 119460 | Brake pedal | 1 |
| 29 | 106950 | Pedal cover | 1 |
| 30 | 103163 | Bushing | 2 |
| 31 | 100424 | Ball joint | 1 |
| 32 | 119164 | Tie rod | 1 |
| 33 | 104910 | Fork, R.H. thread | 1 |
| 34 | 104911 | Fork, L.H. thread | 1 |
| 35 | 10033411 | Pin | 2 |
| 36 | 103167 | Washer | 2 |
| 37 | 10796401 | Cotter pin | 2 |
| 38 | 11690911 | Lock nut | 1 |
| 39 | 10788711 | Lock nut | 1 |
| 40 | 112157 | Bellows | 1 |
| 41 | 121248 | Brake booster control lever | 1 |
| 42 | 100424 | Ball joint | 1 |
| 43 | 112161 | Busching | 1 |
| 44 | 10033411 | Pin | 1 |
| 45 | 10730521 | Washer | 1 |
| 46 | 10796401 | Cotter pin | 1 |
| 47 | 112165 | Lever supporting pin | 1 |
| 48 | 114623 | Lock pin | 1 |
| 49 | 112126 | Shim | 2 |
| 50 | 106083 | Shim | 1 |
| 51 | 121556 | Brake booster | 1 |
| 52 | 16104411 | Nut | 4 |
| 53 | 12601371 | Washer | 4 |
| 54 | 125761 | Pipe to 3-way union | 1 |
| 55 | 100881 | 3-way union | 1 |
| 56 | 120232 | Pipe from 3-way union to valve | 1 |
| 57 | 101538 | No-return valveOn exhaustion use no. 128435 | 1 |
| 58 | 127213 | Pipe from valve to manifold | 1 |
| 59 | 125031 | Pipe from 3-way union to vacuum | 1 |
| 60 | 12179590 | Clamp | 8 |
| 61 | 119566 | Oil reservoir | 1 |
| 62 | 106625 | Seal ring | 2 |
| 63 | 101663 | Stop lights control switch | 1 |
| 64 | 101662 | Shock absorbing nut | 1 |
| 65 | 104895 | Clutch pedal return spring | 1 |
