Testarossa 1987 Page 103 BODY INTERNAL COMPONENTS
Product Description

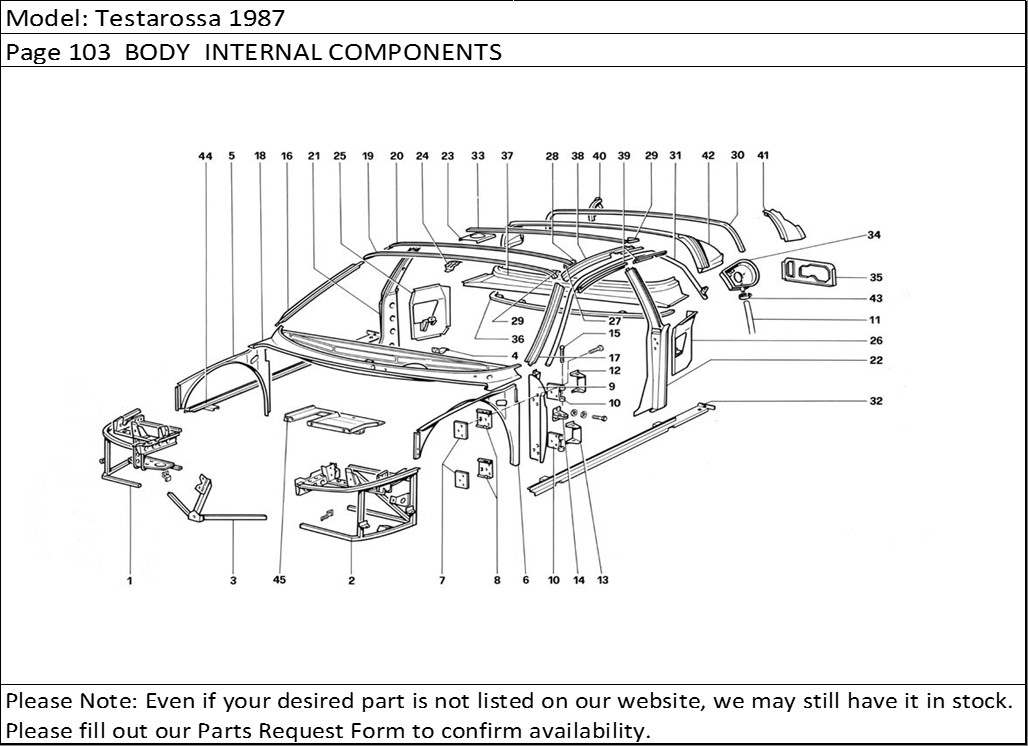

Testarossa 1987 Page 103 BODY INTERNAL COMPONENTS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61482800 | Front right frame | 1 |
| 2 | 61482900 | Front left frame | 1 |
| 3 | 61540400 | Front central frame For CH | 1 |
| 3 | 61483000 | Front central frame Not for CH | 1 |
| 4 | 61483100 | Clip | 1 |
| 5 | 61483200 | Right front inner body side | 1 |
| 6 | 61483300 | Left front inner body side | 1 |
| 7 | 61483400 | Nut screw plate | 4 |
| 8 | 61483500 | Seat nut screw plate | 4 |
| 9 | 61483700 | Seat for left door hinge | 1 |
| 9 | 61483600 | Seat for right door hinge | 1 |
| 10 | 61483800 | Hinge for door | 4 |
| 11 | 123391 | Hose | 1 |
| 12 | 61484000 | Upper stiffening | 2 |
| 13 | 61484100 | Lower stiffening | 2 |
| 14 | 61484200 | Bracket | 2 |
| 15 | 61484300 | Pin for door hinge | 4 |
| 16 | 61484400 | Right pillar | 1 |
| 17 | 61484500 | Left pillar | 1 |
| 18 | 61484600 | Under -Windshield | 1 |
| 19 | 61484700 | Front rib | 1 |
| 20 | 61484800 | Central rib | 1 |
| 21 | 61484900 | Rear right door pillar | 1 |
| 22 | 61485000 | Rear left door pillar | 1 |
| 23 | 61485100 | Stiffening | 1 |
| 24 | 61485200 | Bracket | 1 |
| 25 | 61485300 | RH belt retractor housing | 1 |
| 26 | 61485400 | LH belt retractor housing | 1 |
| 27 | 61485500 | Front stiffening for central rib | 2 |
| 28 | 61485600 | Rear stiffening for central rib | 2 |
| 29 | 61485700 | Stiffening for rear rib | 4 |
| 30 | 61488000 | Rear window plate | 1 |
| 31 | 61487900 | Left upper frame for passenger comp. | 1 |
| 31 | 61487800 | Right upper frame for passenger | 1 |
| 32 | 61558400 | Inner connection plate, completeL.H | 1 |
| 33 | 61488100 | Rear rib | 1 |
| 34 | 61486400 | Fuel filler seat | 1 |
| 35 | 61486500 | Right light seat | 1 |
| 35 | 61486600 | Left light seat | 1 |
| 36 | 61486700 | Frame | 1 |
| 37 | 61486800 | Rear window plate | 1 |
| 38 | 61487000 | Roof left side rail | 1 |
| 38 | 61486900 | Roof right side rail | 1 |
| 39 | 61487100 | Upper rail for right door opening | 1 |
| 39 | 61487200 | Upper rail for left door opening | 1 |
| 40 | 61487300 | Right rear pillar | 1 |
| 41 | 61487400 | Left rear pillar | 1 |
| 42 | 61487500 | Rear window framework | 1 |
| 43 | 12179490 | Clamp | 1 |
| 44 | 61558300 | Inner connection plate (R.H.) complete | 1 |
| 45 | 61530800 | Plate for accelerator pedal RHD | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
