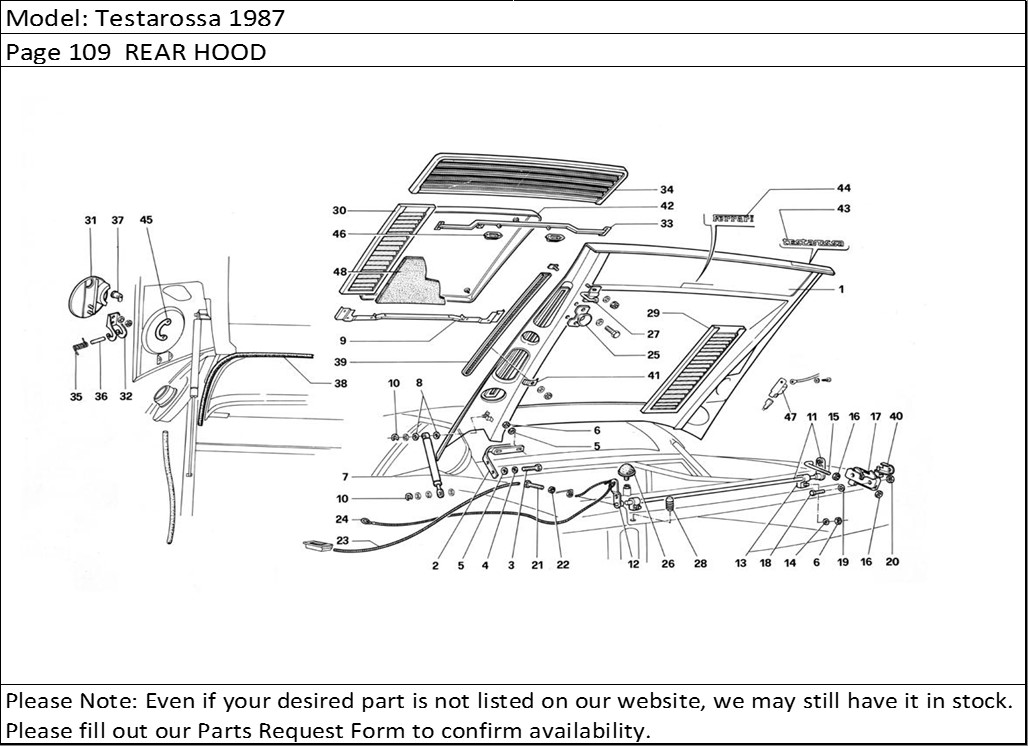

Testarossa 1987 Page 109 REAR HOOD
Product Description
Testarossa 1987 Page 109 REAR HOOD
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61497700 | Engine bonnet | 1 |
| 2 | 61497800 | Engine bonnet right hinge | 1 |
| 2 | 61497800 | Engine bonnet left hinge | 1 |
| 3 | 16049700 | Screw | 4 |
| 4 | 10571770 | Washer | 4 |
| 5 | 12647001 | Washer | 8 |
| 6 | 14084411 | Nut | 6 |
| 7 | 61498000 | Support, LHNot for US | 1 |
| 7 | 61498100 | Support, RHFor US q = 2 | 1 |
| 8 | 12601371 | Washer | 8 |
| 9 | 61498200 | Grill front frame | 1 |
| 10 | 11087976 | Spring ring | 4 |
| 11 | 61498600 | Rod with leverFor RHD | 1 |
| 11 | 61498500 | Rod with leverFor LHD | 1 |
| 12 | 61498400 | LH lever For RHD | 1 |
| 12 | 61498300 | LH lever For LHD | 1 |
| 13 | 61498700 | Lever support | 2 |
| 14 | 10519601 | Washer | 2 |
| 15 | 61498800 | Tie-rod | 2 |
| 16 | 61498900 | Nut | 4 |
| 17 | 61497600 | Lock | 2 |
| 18 | 10902821 | Screw | 4 |
| 19 | 12640601 | Washer | 4 |
| 20 | 14084211 | Nut | 4 |
| 21 | 61497400 | Screw | 1 |
| 22 | 10725911 | Nut | 1 |
| 23 | 61499200 | Cable for opening bonnet | 1 |
| 24 | 61499300 | Emergency cable | 1 |
| 25 | 61499400 | Pad seat | 2 |
| 26 | 61499500 | Pad | 2 |
| 27 | 61499600 | Right catch | 1 |
| 27 | 61499700 | Left catch | 1 |
| 28 | 61499800 | Small block | 2 |
| 29 | 61500000 | Right side grill for air exhaust | 1 |
| 30 | 61500100 | Left side grill for air exhaust | 1 |
| 31 | 61500200 | Fuel filler lid | 1 |
| 32 | 61500300 | Fuel filler lid hinge | 1 |
| 33 | 61541900 | Grill rear frame For US MY 86 - 87 | 1 |
| 33 | 61500400 | Grill rear frame Not for US MY 86 - 87 | 1 |
| 34 | 61500500 | Rear grill for air exhaust | 1 |
| 35 | 61500600 | Spring | 1 |
| 36 | 61500700 | Pin | 1 |
| 37 | 61500800 | Fuel filler lid lock With set of lock | 1 |
| 38 | 61500900 | Gasket | 1 |
| 39 | 61501100 | Left side grill on fin | 1 |
| 39 | 61501000 | Right side grill on fin | 1 |
| 40 | 61501200 | Switch | 2 |
| 41 | 61501300 | Bracket | 6 |
| 42 | 61541300 | Central panelFor US MY 86 - 87 | 1 |
| 42 | 61501400 | Central panel Not for US MY 86 -87 | 1 |
| 43 | 61501500 | Testarossa nameplate | 1 |
| 44 | 61025000 | Ferrari nameplate | 1 |
| 45 | 61529900 | Fuel filler lid gasket | 1 |
| 46 | 61647300 | Lamp | 2 |
| 47 | 61539800 | Magnetic switch | 1 |
| 47 | 61538200 | Switch for lamp | 2 |
| 48 | 61541800 | Engine, sound insulationCH | 1 |
