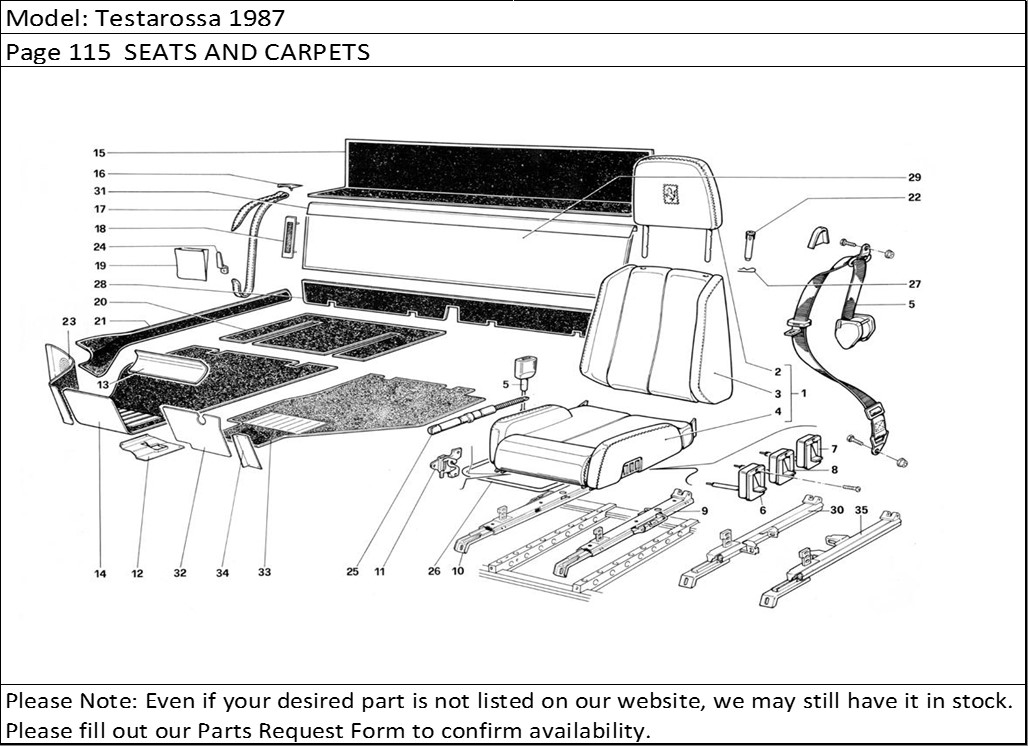

Testarossa 1987 Page 115 SEATS AND CARPETS
Product Description
Testarossa 1987 Page 115 SEATS AND CARPETS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61537800 | Front RH seat, completeUntil car No 67077 | 1 |
| 1 | 61561400 | Front RH seat, completeStarting car No 67079 | 1 |
| 1 | 61537900 | Front LH seat, completeUntil car No 67077 | 1 |
| 1 | 61461500 | Front LH seat, completeStarting car No 67079 | 1 |
| 2 | 61538000 | Headrest | 2 |
| 3 | 61516000 | Right back rest | 1 |
| 3 | 61516100 | Left - back rest | 1 |
| 4 | 61516300 | Left bottom | 1 |
| 4 | 61516200 | Right bottom | 1 |
| 5 | 123087 | Safety belt Not for US-SA-CDN-J | 2 |
| 5 | 123088 | Safety beltFor U6 - SA - CDN - J | 2 |
| 6 | 61516400 | Lock release | 2 |
| 7 | 61516500 | Adjuster | 2 |
| 8 | 61516600 | Adjuster | 2 |
| 9 | 61516700 | Left seat guideUntil car No 67077 | 2 |
| 10 | 61516800 | Right seat guideUntil car No 67077 | 2 |
| 11 | 61516900 | Right lock | 1 |
| 11 | 61517000 | Left lock | 1 |
| 12 | 61517100 | Accelerator pedal cover For LHD | 1 |
| 13 | 61517300 | Dash board cover For RHD | 1 |
| 13 | 61543000 | Set of carpets For RHD | 1 |
| 13 | 61517200 | Dash board cover For LHD | 1 |
| 13 | 61558200 | Set of carpets For U7 | 1 |
| 13 | 61542900 | Set of carpets For LHD, not for U7 | 1 |
| 14 | 61517700 | Front left carpet For RHD | 1 |
| 14 | 61517400 | Front right carpet For LHD | 1 |
| 15 | 61517800 | Shieldpanel carpet | 1 |
| 16 | 61517900 | Luggage belt fixing support | 2 |
| 17 | 61518000 | Luggagabelt fixing | 2 |
| 18 | 61518100 | Luggage belt stop | 2 |
| 19 | 61518300 | Left pocket | 2 |
| 19 | 61542800 | Headrest cover | 1 |
| 19 | 61542700 | Back rest cover | 1 |
| 19 | 61542600 | Left bottom cover | 1 |
| 19 | 61542500 | Right bottom cover | 1 |
| 19 | 61518200 | Right pocket | 2 |
| 20 | 61518700 | Rear left carpet For RHD | 1 |
| 20 | 61518500 | Rear left carpet For LHD | 1 |
| 20 | 61518600 | Rear right carpet For RHD | 1 |
| 20 | 61518400 | Rear right carpet For LHD | 1 |
| 21 | 61550300 | Right framework carpet For U7 | 1 |
| 21 | 61519000 | Right framework carpet For RHD | 1 |
| 21 | 61518800 | Right framework carpet For LHD, not for U7 | 1 |
| 21 | 61518900 | Left framework carpet For LHD, not for U9 | 1 |
| 21 | 61550400 | Left framework carpet For U7 | 1 |
| 21 | 61519100 | Left framework carpet For RHD | 1 |
| 22 | 61519200 | Bush | 4 |
| 23 | 61540200 | R.H. side carpet RHD | 1 |
| 23 | 61540100 | L.H. side carpet LHD | 1 |
| 24 | 61519500 | Pocket support | 2 |
| 25 | 61519600 | R.H. adjuster | 1 |
| 25 | 61534400 | L.H. adjuster | 1 |
| 26 | 61561800 | Seat releasing leverStarting from car 67079 | 2 |
| 26 | 61519700 | Seat releasing leverUntil car No 67077 | 2 |
| 27 | 61519800 | Stop spring | 8 |
| 28 | 61519900 | Tunnel shield panel carpetFor LHD, not for U7 | 1 |
| 28 | 61520000 | Tunnel shield panel carpetFor RHD | 1 |
| 28 | 61550500 | Tunnel shield panel carpet For U7 | 1 |
| 29 | 61520100 | Lower covering | 1 |
| 30 | 61561600 | Right seat guideFrom car No 67079 | 1 |
| 31 | 61534500 | Trim for lower covering | 1 |
| 32 | 61538700 | Front vertical carpet RHD,driver side | 1 |
| 32 | 61538400 | Front vertical carpet LHD, driver side | 1 |
| 33 | 61538800 | Front carpet RHD ()Driver side | 1 |
| 33 | 61538500 | Front carpet LHD ()Driver side | 1 |
| 34 | 61538100 | Footrest, driver side ()LHD | 1 |
| 35 | 61561700 | Left seat guideStarting car No 67079 | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
