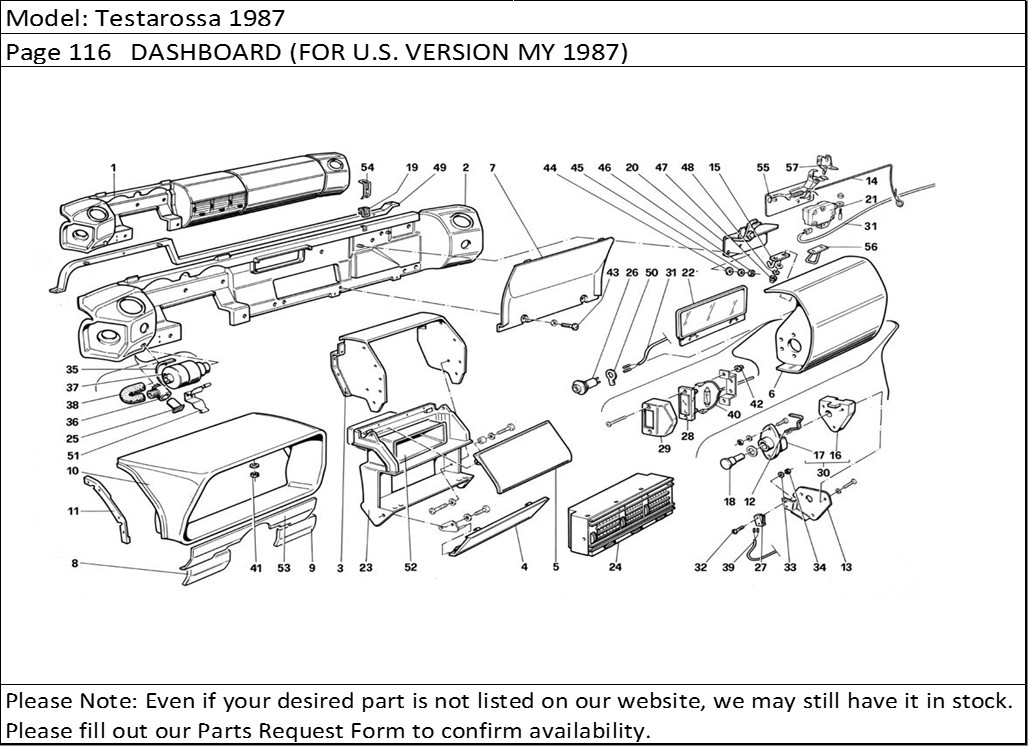

Testarossa 1987 Page 116 DASHBOARD (FOR U.S. VERSION MY 1987)
Product Description
Testarossa 1987 Page 116 DASHBOARD (FOR U.S. VERSION MY 1987)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61562100 | LHD dash board assembly For LHD, with instruments seat, starting from car 67079 | 1 |
| 1 | 61530000 | LHD dash board assembly For LHD, with instruments seat, until car no. 67077 | 1 |
| 1 | 61520300 | LHD dash board assembly Without instruments seat, until car no. 67077 | 1 |
| 1 | 61520400 | RftD dash board assembly Without instruments seat, until car no. 67077 | 1 |
| 1 | 61562500 | RHD dash board assembly Without instruments seat, starting from car no. 67080 | 1 |
| 1 | 61562300 | RHD dash board assembly For AUS, with instruments seat, starting from car 67079 | 1 |
| 1 | 61562200 | RHD dash board assembly For RHD, with instruments seat, starting from car 67079 | 1 |
| 1 | 61530200 | RHD dash board assemblyFor AUS, with instruments seat, until car no. 67077 | 1 |
| 1 | 61520500 | RHD dash board assembly For AUS, without instruments seat, until car no. 67077 | 1 |
| 1 | 61530100 | RHD dash board assembly For RHD, with instruments seat, until car no. 67077 | 1 |
| 1 | 61553700 | Dash board assembly Without instruments seat | 1 |
| 1 | 61553600 | Dash board assembly With instruments seat | 1 |
| 1 | 61562600 | RHD dash board assembly For AUS, without instruments seat, starting from car no. 67079 | 1 |
| 1 | 61562400 | LHD dash board assembly Without instruments seat, starting from car no. 67079 | 1 |
| 2 | 61520700 | Dash board For RHD - Until car No 67077 | 1 |
| 2 | 61520600 | Dash board For LHD, until car No 67077 | 1 |
| 2 | 61562700 | Dash board For LHD - Starting from car No 67079 | 1 |
| 2 | 61553800 | Dash board frame | 1 |
| 2 | 61562800 | Dash board For RHD - Starting rom car No 67079 | 1 |
| 3 | 61520900 | Dash board central section For RHD | 1 |
| 3 | 61520800 | Dash board central section For LHD | 1 |
| 4 | 61521000 | Dash board central panelUntil car No 67077 | 1 |
| 4 | 61545200 | Dash board central panelStarting from car 67079 | 1 |
| 4 | 61553900 | Dash board central panel | 1 |
| 5 | 61521100 | Dash board central cover | 1 |
| 6 | 61521200 | Dash board box for LHD | 1 |
| 6 | 61554100 | Dash board box | 1 |
| 7 | 61521400 | Dash board box panel | 1 |
| 8 | 61554900 | Steering column cover | 1 |
| 8 | 61521500 | Small right cover Until car no. 67077 | 1 |
| 9 | 61521600 | Small left cover Until car no. 67077 | 1 |
| 10 | 61558900 | Housing instruments For LHD, starting from car 67079 | 1 |
| 10 | 61558900 | Housing instruments | 1 |
| 10 | 61559000 | Housing instrumentsFor RHD, starting from car 67079 | 1 |
| 10 | 61521700 | Housing instruments Until car no. 67077 | 1 |
| 11 | 61521900 | Left angle piece | 1 |
| 11 | 61521800 | Right angle piece | 1 |
| 12 | 61522000 | Clip | 2 |
| 13 | 61554500 | Bracket | 1 |
| 13 | 61522100 | Bracket LHD | 1 |
| 13 | 61534600 | Bracket RHD | 1 |
| 14 | 61522200 | Safety cable | 1 |
| 15 | 61522300 | Lock strikerFor bracket No 20 | 1 |
| 15 | 61554600 | Lock striker | 1 |
| 16 | 61522500 | Left fixed hinge | 1 |
| 16 | 61522400 | Right fixed hinge | 1 |
| 17 | 61522700 | Left mobile hinge | 1 |
| 17 | 61522600 | Right mobile hinge | 1 |
| 18 | 61522800 | Pin | 2 |
| 19 | 61522900 | Frame For bracket No 20 | 1 |
| 19 | 61554700 | Frame | 1 |
| 20 | 61523000 | Lock bracket Until car .......... | 1 |
| 21 | 61523100 | Lock magnet | 1 |
| 22 | 61523200 | Courtesy mirror | 1 |
| 23 | 61523400 | Frame work For RHD | 1 |
| 23 | 61523300 | Frame work | 1 |
| 23 | 61523300 | Frame work For LHD | 1 |
| 24 | 61523500 | Central air outler | 1 |
| 25 | 61079100 | Sensor for internal temperature | 1 |
| 26 | 61523600 | Socket | 1 |
| 27 | 61523700 | Switch | 1 |
| 28 | 61647200 | Dash board box lamp | 2 |
| 29 | 61523800 | Dash board box lamp frame | 2 |
| 30 | 61524000 | Left dashboard box hinge | 1 |
| 30 | 61523900 | Right dashboard box hinge | 1 |
| 31 | 124410 | Socket cables | 1 |
| 32 | 61524100 | Screw | 2 |
| 33 | 61524200 | Washer | 2 |
| 34 | 61524300 | Nut | 2 |
| 35 | 120065 | Sensor ring | 1 |
| 36 | 61079200 | Box sensor | 1 |
| 37 | 61079300 | Suction fan for sensor | 1 |
| 38 | 124039 | Tube from suction fan to sensor | 1 |
| 39 | 124409 | Switch cables | 1 |
| 40 | 124411 | Lamp cables | 1 |
| 41 | 14084111 | Nut | 4 |
| 42 | 12611342 | Female screw | 4 |
| 44 | 12643701 | Washer | 2 |
| 46 | 15896211 | Nut | 2 |
| 48 | 10519201 | Washer | 4 |
| 50 | 61524800 | Negative terminal | 1 |
| 52 | 61541600 | Radio seat | 1 |
| 54 | 61554000 | Box cover | 1 |
| 56 | 61545600 | Glove box lock | 1 |
