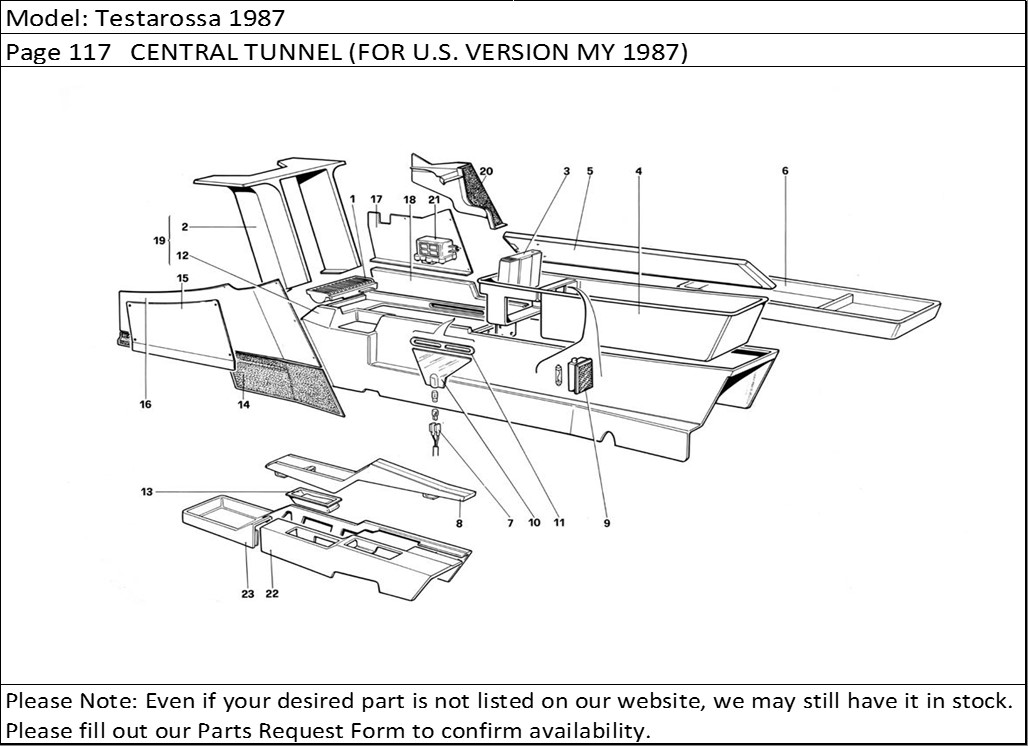

Testarossa 1987 Page 117 CENTRAL TUNNEL (FOR U.S. VERSION MY 1987)
Product Description
Testarossa 1987 Page 117 CENTRAL TUNNEL (FOR U.S. VERSION MY 1987)
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.
| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61524900 | Money case | 1 |
| 2 | 61525000 | Central consoleLHD | 2 |
| 2 | 61534700 | Central consoleRHD | 1 |
| 3 | 61555000 | Safety belts control unit | 2 |
| 3 | 61525100 | Cassette box | 6 |
| 4 | 61530400 | Glove box For RHD | 1 |
| 4 | 61525200 | Glove box For LHD | 1 |
| 5 | 61553100 | Glove box cover | 1 |
| 5 | 61525300 | Glove box coverLHD | 1 |
| 5 | 61534900 | Glove box cover RHD | 1 |
| 6 | 61525400 | Glove box for passenger | 1 |
| 7 | 61503600 | Ring | 1 |
| 7 | 124376 | Cables for tunnel lamp | 1 |
| 8 | 61563800 | Side consoleLHD | 1 |
| 8 | 61563900 | Side console RHD | 1 |
| 9 | 61540300 | Glove box lamp | 1 |
| 9 | 61566300 | LH inner console | 1 |
| 10 | 61651600 | Glass | 2 |
| 11 | 61525800 | Glass frame | 2 |
| 12 | 61525900 | Tunnel LHD | 1 |
| 12 | 61534800 | Tunnel RHD | 1 |
| 13 | 60297207 | Handle for opening hoods | 2 |
| 13 | 60297207 | Handle for luggage compartment lid | 1 |
| 13 | 60297207 | Handle for engine compartment lid | 1 |
| 14 | 61567000 | Carpet for LH lower panel RHD | 1 |
| 14 | 61564100 | L.H. complete panel, lower | 1 |
| 14 | 61530500 | Carpet for lower panel LHD | 1 |
| 14 | 61564300 | Lower complete panelFor RHD | 1 |
| 14 | 61564100 | Lower complete panel For LHD | 1 |
| 15 | 61530700 | Accelerator pedal protectionFor LHD | 1 |
| 16 | 61552800 | Upper panel, LH | 1 |
| 16 | 61525600 | LH panelFor LHD | 1 |
| 16 | 61535200 | LH panelFor RHD | 1 |
| 17 | 61535100 | R.H. panel For RHD | 1 |
| 17 | 61541700 | R.H. panel For SA and J | 1 |
| 17 | 61525500 | R.H. panel For LHD, not for SA and J | 1 |
| 18 | 61530600 | Carpet for RH lower panel RHD | 1 |
| 18 | 61564000 | Lower complete panel (RH) For RHD | 1 |
| 18 | 61564200 | Lower complete panel (RH) For RHD | 1 |
| 18 | 61566900 | Carpet for RH lower panel LHD | 1 |
| 18 | 61566900 | Carpet for lower panel | 1 |
| 19 | 61526000 | Central console and tunnel | 1 |
| 19 | 61552400 | Central console and tunnel | 1 |
| 19 | 61526100 | Central console and tunnel | 1 |
| 20 | 61559300 | Foot rest For RHD | 1 |
| 20 | 61567100 | Carpet for footrest | 1 |
| 21 | 129537 | Tachometric switch with buzzerForSA | 1 |
| 21 | 129536 | Tachometric switch with buzzerFor J | 1 |
| 21 | 124376 | Cable for tunnel lamp | 1 |
| 22 | 61557300 | Safety belts, complete | 1 |
| 22 | 61565800 | Handbrake outer console (LHD)LHD | 1 |
| 22 | 61566000 | Handbrake outer console (RHD)RHD | 1 |
| 23 | 61565900 | Handbrake inner console (LHD)LHD | 1 |
| 23 | 61566100 | Handbrake inner console (RHD)RHD | 1 |
| 24 | 61553400 | Cover | 1 |
| 26 | 61557200 | Lap belt anchorage | 2 |
| 27 | 61552200 | R.H. lap belt | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
