Testarossa 1987 Page 120 LAMPS
Product Description
Testarossa 1987 Page 120 LAMPS
Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

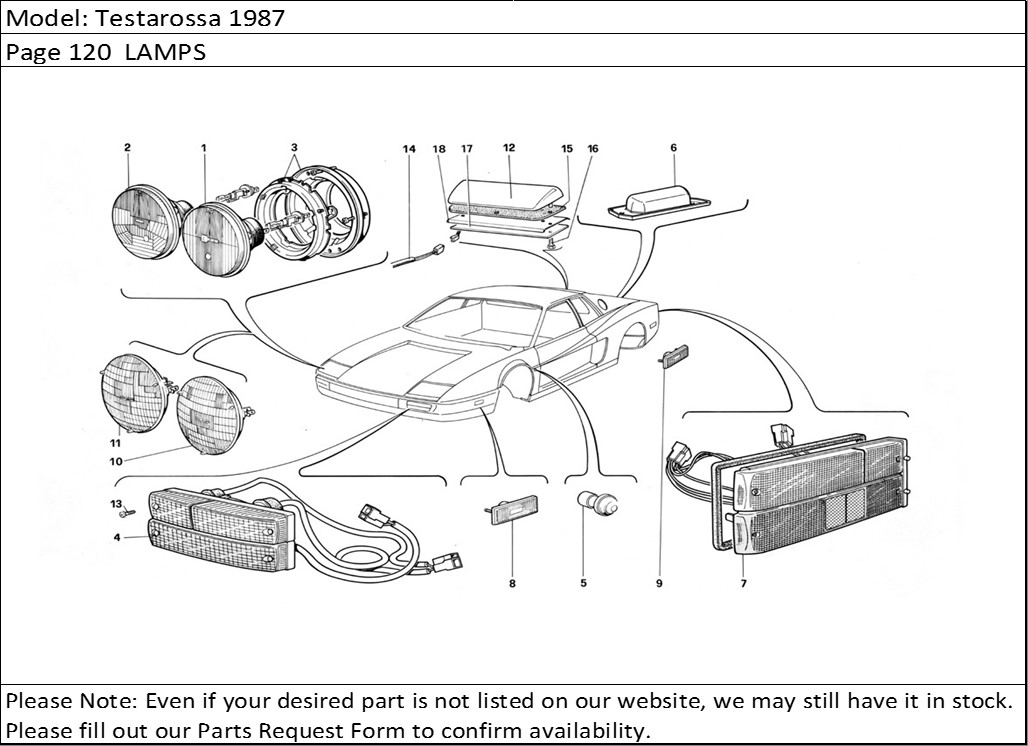

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|---|---|---|
| 1 | 61005400 | High beam lamp For F | 2 |
| 1 | 60907200 | High beam lamp Not for F | 2 |
| 2 | 61005600 | Low beam lamp For F | 2 |
| 2 | 60907400 | Low beam lamp Not for RHD - F - J | 2 |
| 2 | 60944800 | Low beam lamp For RHD and J | 2 |
| 3 | 61646400 | Ring frame for right high beam lamp | 1 |
| 3 | 61646500 | Ring frame for left high beam lamp | 1 |
| 3 | 61646600 | Ring frame for right low beam lamp | 1 |
| 3 | 61646700 | Ring frame for left low beam lamp | 1 |
| 4 | 61652400 | Front left side - direction - flashingor US | 1 |
| 4 | 61643300 | Front left side - direction - flashingor RHD and D | 1 |
| 4 | 61725900 | Front left side - direction - flashing light For LHD - Not for US - D - F | 1 |
| 4 | 61816000 | Front left side - direction - flashing lightFor F | 1 |
| 4 | 61536300 | Lens for front right light For US | 1 |
| 4 | 61652300 | Front right side - direction - flashingor US | 1 |
| 4 | 61643200 | Front right side - direction - flashingor RHD and D | 1 |
| 4 | 61536400 | Lens for front left light For US | 1 |
| 4 | 61536200 | Lens for front left light RHD | 1 |
| 4 | 61536000 | Lens for front left light LHD | 1 |
| 4 | 61536100 | Lons for front right light RHD | 1 |
| 4 | 61535900 | Lens for front right light LHD | 1 |
| 4 | 61725800 | Front right side - direction - flashing light For LHD - Not for US - D - F | 1 |
| 4 | 61815900 | Front right side - direction - flashing lightfor F | 1 |
| 5 | 61646800 | Side direction lightNot for US | 2 |
| 6 | 61558800 | Plate light For CDN | 1 |
| 6 | 61646900 | Plate light Not for CDN | 2 |
| 7 | 61536600 | Lens for rear left light | 1 |
| 7 | 61643500 | Rear left light Not for US and J | 1 |
| 7 | 61536700 | Lens for rear right light | 1 |
| 7 | 61652700 | Rear right light For US and J | 1 |
| 7 | 61643400 | Rear right light Not for US and J | 1 |
| 7 | 61652800 | Rear left light For US and J | 1 |
| 7 | 61536500 | Lens for rear right light | 1 |
| 7 | 61536800 | Lefts for rear left light | 1 |
| 8 | 61652500 | Front side marker For US | 2 |
| 9 | 61652600 | Rear side marker For US | 2 |
| 10 | 61610500 | Headlamp main beamsFor US | 2 |
| 11 | 61610600 | Headlamp dipped beamsFor US | 2 |
| 12 | 61892900 | Additional stop lightsFor US | 2 |
| 13 | 131373 | Screw | 12 |
| 14 | 129319 | Cable | 1 |
| 15 | 61895400 | Gasket | 1 |
| 16 | 61565100 | Screw | 2 |
| 17 | 61542000 | Insulation | 1 |
| 18 | 61567400 | Support | 1 |
| 32 | 82254300 | LH BRACKET | |
| 33 | 69129500 | ROLLER | |
| 1 | 9664 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Leather- -Valid | 1 |
| 1 | 9665 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Leather- -Alcantara- stitching | 1 |
| 1 | 9690 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9691 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9666 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Leather- | 1 |
| 1 | 9667 | L.H. SEAT COMPLETE WITH GUDES -Easy entry- -Full OPT- -Daytona + lining- -Leather- -Alcantara- | 1 |
| 1 | 9692 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9693 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Logerzy- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9668 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Leather- -Valid for | 1 |
| 1 | 9669 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Logerzy- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9694 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Leather- -Valid | 1 |
| 1 | 9695 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping+Quilt- -Leather- -Alcantara- -Valid | 1 |
| 1 | 9670 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Leather- -Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel without | 1 |
| 1 | 9671 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping+Quilt- -Leather- -Alcantara- | 1 |
| 1 | 9696 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9697 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9672 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Leather- -Valid for | 1 |
| 1 | 9673 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Carbon- -Leather- -Alcantara- -Valid for | 1 |
| 1 | 9698 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9699 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona- -Carbon- -Leather- -Alcantara- | 1 |
| 1 | 9674 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9675 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona- -Carbon- -Leather- | 1 |
| 1 | 9700 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9701 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9676 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- -Leather--Valid for USA and CDN- -For vehicles up to Ass. No. 86008 with seat with back panel | 1 |
| 1 | 9677 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Cadenino- -Carbon- -Leather- | 1 |
| 1 | 9702 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9703 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9678 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9679 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Daytona + lining- -Carbon- -Leather- | 1 |
| 1 | 9704 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Leather- | 1 |
| 1 | 9705 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Lozengy- -Carbon- -Leather- -Alcantara- stitching | 1 |
| 1 | 9680 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9681 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Lozengy- -Carbon- -Leather- | 1 |
| 1 | 9706 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9707 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Basic- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9682 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
| 1 | 9683 | L.H. SEAT COMPLETE WITH GUIDES -Easy entry- -Full OPT- -Piping + Quilt- -Carbon- -Leather- | 1 |
