Home > Page 1 CRANKCASE

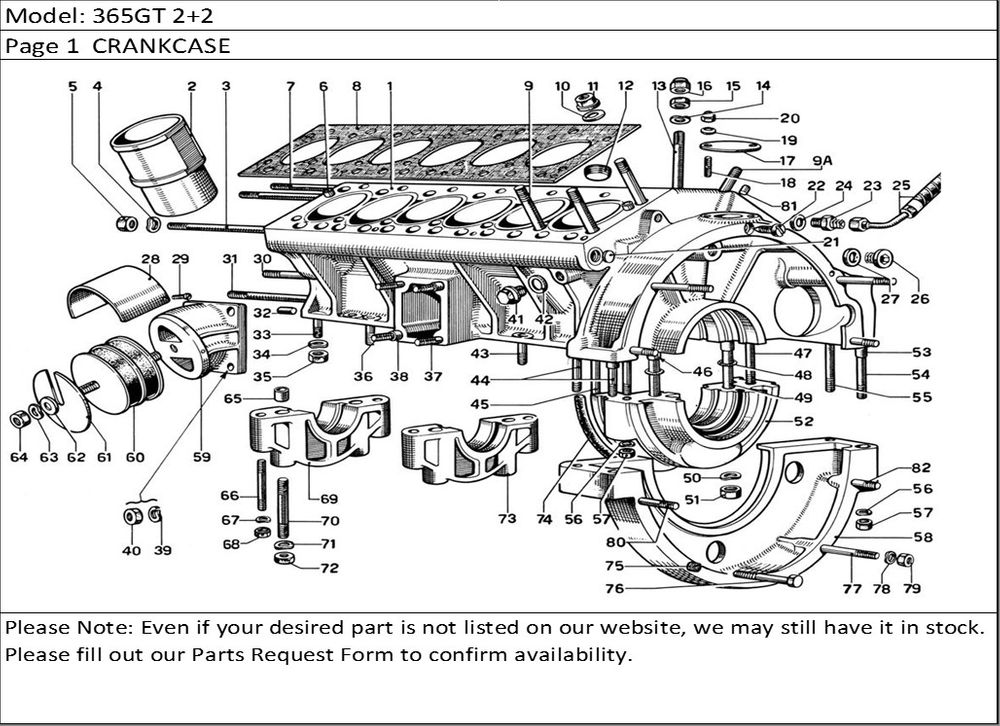

Page 1 CRANKCASE

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	100507	Basamento	1
2	100560	1 maggiorazione	12
2	100560	Canna cilindro (0 normale)	12
2	100560	2 maggiorazione	12
3	P2	THREADED STUD	2
4	REO 8	Washer	6
5	8 x 1 UNI	Nut	6
6	94615	CENTERING DOWEL	3
7	P2	THREADED STUD	1
8	100504	Gasket or Seal	2
9	100506	Stud	1
9	100505	Stud	27
10	95242	Washer	28
11	95241	Nut	28
12	95124	Tappo conico	3
13	95171	Stud	6
14	REO 10	Washer	6
15	10x1,25UN1	Nut	1
16	110 x 1,25	Nut	5
17	10788	Coperchietto ispezione	1
18	P1	THREADED STUD	2
19	RC 6	Washer	2
20	106 MA	Nut	2
21	T e 20	Expansion Plug	4
22	10787	Indice fasatura .	1
23	93444	UNION	1
24	94385	Gasket or Seal	1
25	240042	Complessivo tubo olio	1
26	94858	Plug	2
27	94191	GASKET	2
28	100513	Lamiera protezione tampone	2
29	4P x 9,5 T	Screw	4
30	P2	THREADED STUD	1
31	P2	THREADED STUD	1
32	94617	Grano di centraggio .	1
33	P2	Stud	2
34	REO 8	Washer	14
35	8x1UNI5588	Nut	14
36	95173	Stud	4
37	95174	Stud	4
38	95006	CENTERING DOWEL	4
39	REG 10	Washer	8
40	10x1,25UN1	Nut	8
41	16 TF 1	Tappo scarico acqua	2
42	16 TR 2	GASKET	2
43	P2	Stud	10
44	P2	Stud	2
45	P2	Long Threaded Stud	2
45	-	pa al basamento	2
46	94379	CENTERING DOWEL	2
47	P6	Stud	2
48	114	Seal	4
49	95167	Stud	2
50	REO 12	Washer	2
51	12 x 1,25	Nut	2
52	100211	Support	1
53	SGC1	Centering Dowel	2
54	P2	THREADED STUD	1
55	94850	Stud	1
56	REO 8	Washer	6
57	8 x 1 UNI	Nut	6
58	100318	Flangia attacco frizione	1
59	100383	Zampa sostegno basamento	2
60	10983	Tampone sospensione motore	2
61	100339	Spessore per tampone	4
62	93300	WASHER	2
63	REG 10	Washer	2
64	10x1,25UN1	Nut	2
65	94379	CENTERING DOWEL	12
66	P6	Stud	12
67	REO 8	Washer	12
68	8 x1 uNl55	Nut	12
69	100028	Support	1
70	95166	Stud	12
71	REO 12	Washer	12
72	12x1,25UN1	Nut	12
73	100027	Support	5
74	100026	Guarnizioni gomma	1
75	BBF2	Bussola filettata	1
76	8 x 50 UNI	Bolt	1
77	P 2	THREADED STUD	3
78	REO 8	Ronde!la	8
79	8 x 1 UNI5	Nut	8
80	P 2	THREADED STUD	1
81	95079	Grano per testa destra .	1
82	P 2	Stud	3
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
