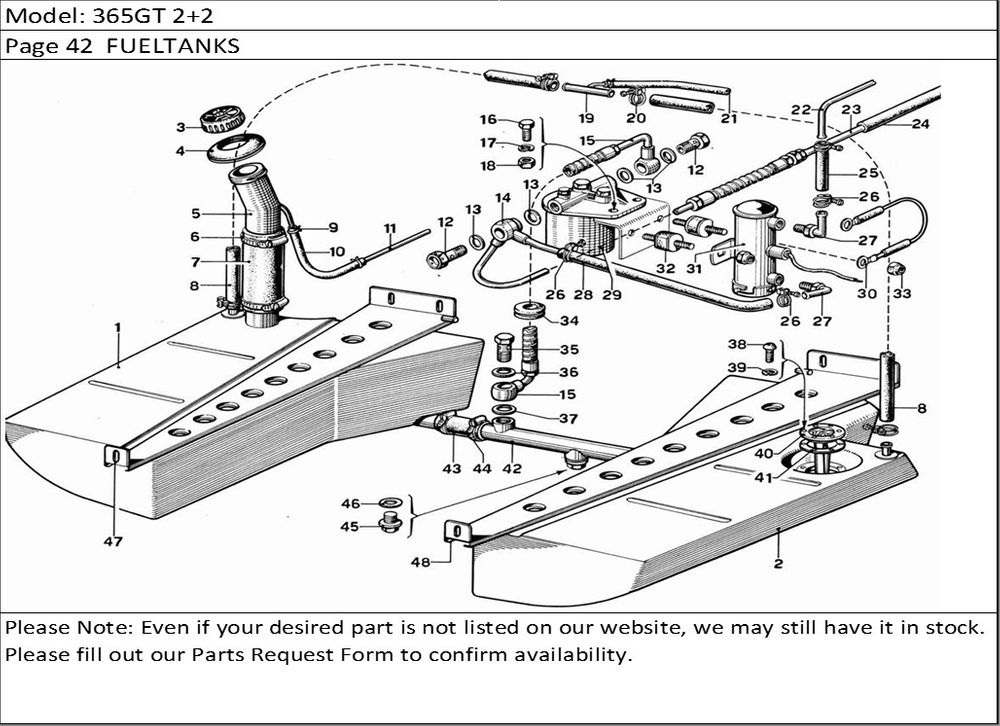

Page 42 FUELTANKS

Click On Diagram To Enlarge

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts Diagram	Part #	Description	Quantity Used
1	820741	Serbatoio sinistro	1
2	820742	Serbatoio destro	1
3	820486	Tappo serbatoio	1
4	20/6000	Rubber Gasket	1
5	820752	UNION	1
6	BS. 3628	Fascetta 0 50x70	2
7	95111	Manicotto gomma	1
8	0 16x22x20	Tubo collegamento	1
9	94951	Spring	3
10	95018	SLEEVE	2
11	180775	Tubo di ritorno dal tubo alimentazione carburatori al serbatoio	1
12	95253	Union	2
13	92786	GASKET	4
14	180742	Complessivo tubo dal filtro alle pompe	1
15	180772	Complessivo tubo flessibile collegamento serbatoi al filtro	1
16	10x25UNI 5	Bolt	2
17	REG10	Washer	2
18	10x1,25 UN	Nut	2
19	820570	UNION	1
20	TIPO C15=1	Jubilee Clip	4
21	5 x 9 x 30	Tubo sfiato .	1
22	180774	Complessivo tubo pompa elettrica al tubo alimentazione carburatori	1
23	180773	Assieme tubo rigido tra filtro e pompa meccanica	1
24	GEMMA 611x	Tubo protezione	1
25	95303	SLEEVE	1
26	TWO C. 013	Jubilee Clip	4
27	94918	Union	2
28	0 gx14x500	Tubo per pompa .	1
29	34341	Filtro carburante FISPA 3037.06	1
30	34403	Treccia per massa	1
31	V 476087	Pompa benzina elettrica	1
32	34408 Fr.	Support	2
33	106 MA	Nut	2
34	820571	Cable Grommet	1
35	95252	Union	1
36	92930	GASKET	1
37	95017	GASKET	6
38	4 VR4x10	Screw	6
39	REG4	Washer	1
40	67.8034.99	Comando indicatore benzina	1
41	82925	Gasket or Seal	1
42	820740	Tubo collegamento	1
43	95003	SLEEVE	2
44	95026 29/	Fascetta per tubo collegamento serbatoi	4
45	16 TF 1	Tappo scarico	1
46	95109	GASKET	1
47	-	Bracket / Support	1
48	-	Bracket / Support	1
14	65520000	FRONT FIXING BRACKET	4
15	10902024	SCREW	8
16	12640677	WASHER	8
17	140594	REAR SIDE-MARKER LAMP -Valid for USA and CDN	2
17	147563	FRONT SIDE-MARKER LAMP -Valid for USA and CDN	2
18	65164700	HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer	1
19	65511700	GASKET -Valid for cars with headlights washer	1
20	65363000	HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer	1
21	65380000	HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer	2
22	65380100	L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
22	65667200	R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer	1
23	15517201	SCREW -Valid for cars with headlights washer	6
24	65896600	R.H. SUPPORT -Valid for cars with headlights washer	1
24	65896700	L.H. SUPPORT -Valid for cars with headlights washer	1
25	65896400	R.H. PLUG -Valid for cars with headlights washer	1
25	65896500	L.H. PLUG -Valid for cars with headlights washer	1
26	10441590	BRACKET -Valid for cars with headlights washer	4
27	14296191	RIVET -Valid for cars with headlights washer	4
28	65161700	L. H. FRONT SIDE LIGHT SUPPORT	1
28	65161500	R. H. FRONT SIDE LIGHT SUPPORT	1
29	10902424	SCREW	2
30	116413	WASHER	2
31	63234200	SCREW	2
32	12646801	WASHER	2
33	185378	CLIP	3
34	183672	BULB -For gas lamps	2
35	65705600	L.H. BRACKET -For gas lamps	1
35	65705500	R.H. BRACKET -For gas lamps	1
36	65705400	BRACKET -For gas lamps	2
37	185554	FRONT LIGHT CONTROL STATION -For gas lamps	2
38	155751	CLIP -Valid for USA and CDN	4
39	14084111	NUT -Valid for USA and CDN	8
40	12638124	WASHER -Valid for USA and CDN	8
41	66120200	INSULATION	1
42	14190190	NUT WITH CAGE	2
43	64529600	SPACER	8
4	66325702	Description not available
4	67259102	Description not available
4	66325725	Description not available
4	67259127	Description not available
