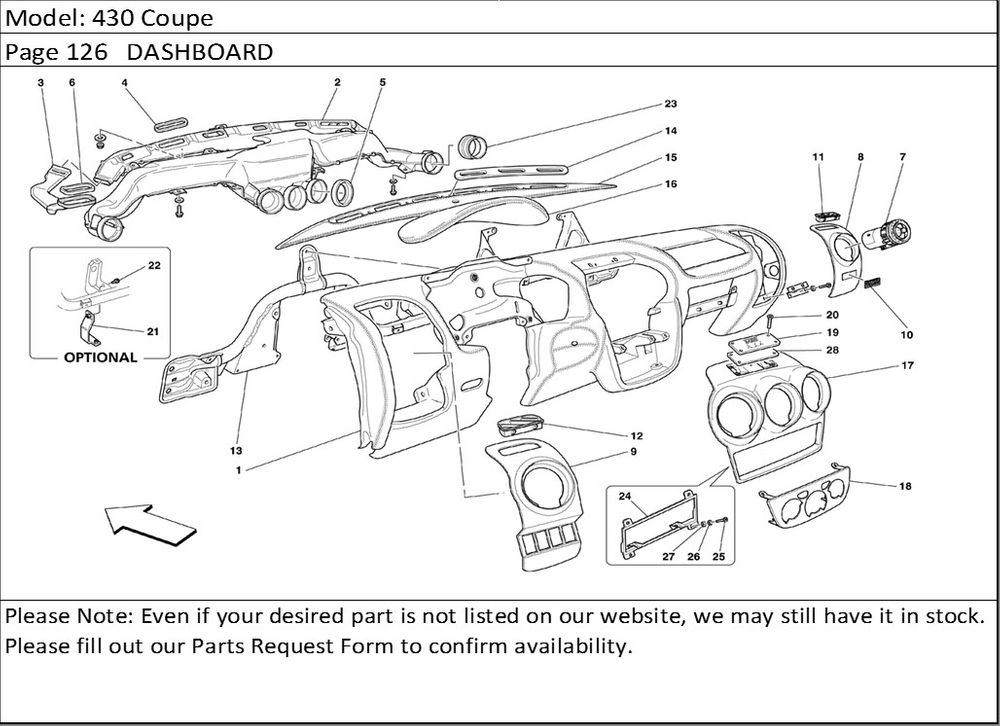

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 802694 | DASHBOARD WITH INSTRUMENTS -Not for USA, CDN, GD and J- -Standard- | 1 |
| 1 | 683583 | DASHBOARD WITH INSTRUMENTS -Valid for GB- -Air-bag de-activation- | 1 |
| 1 | 676850 | DASHBOARD WITH INSTRUMENTS -Not for GB- -Air-bag de-activation- | 1 |
| 1 | 691418 | DASHBOARD WITH INSTRUMENTS -Valid for J- -Standard- | 1 |
| 1 | 691419 | DASHBOARD WITH INSTRUMENTS -Valid for AUS- -Standard- | 1 |
| 1 | 802697 | DASHBOARD WITH INSTRUMENTS -Valid for GB- -Standard- | 1 |
| 1 | 693051 | DASHBOARD WITH INSTRUMENTS -Valid for CDN- -Standard- | 1 |
| 1 | 692126 | DASHBOARD WITH INSTRUMENTS -Valid for USA- -Standard- | 1 |
| 2 | 63352900 | AIR DUCTING-Not for GD- | 1 |
| 2 | 65536200 | AIR DUCTING-Valid for GD- | 1 |
| 3 | 65132400 | L.H. SIDE DUCTING | 1 |
| 3 | 65132300 | R.H. SIDE DUCTING | 1 |
| 4 | 66050600 | GASKET | 6 |
| 5 | 63353300 | CENTRAL AIR OPENING GASKET | 3 |
| 5 | 63353300 | CENTRAL AIR OPENING GASKET -Not as spare part now- -Replaced by 63353300- | 3 |
| 6 | 65132500 | GASKET | 2 |
| 7 | 68811300 | AIR DIFFUSOR OPENING | 5 |
| 8 | 67796810 | R.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 8 | 68648100 | R.H. AIR OUTLET PLATE -Optional- -Carbon version- | 1 |
| 9 | 67916310 | L.H. AIR OUTLET PLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 9 | 68648200 | L.H. AIR OUTLET PLATE -Optional- -Carbon version- | 1 |
| 10 | 80462510 | 60 ANNI MARK | 1 |
| 10 | 69833810 | CAMPIONI DEL MONDO PLATE | 1 |
| 10 | 69065010 | CAMPIONI DEL MONDO 2004 PLATE -Not as spare part- -Replaced by 69833810- | 1 |
| 10 | 68124210 | CAMPIONI DEL MONDO 2003 PLATE | 1 |
| 11 | 67919000 | R.H. PLATE | 1 |
| 12 | 67919100 | L.H. PLATE | 1 |
| 13 | 68356100 | DASHBOARD FRAME ASSEMBLY -Valid for GD- | 1 |
| 13 | 67790600 | DASHBOARD FRAME ASSEMBLY -Not for GD- | 1 |
| 14 | 65018300 | L.H. AIR OUTLET PLATE -Not for GD- | 1 |
| 14 | 65891000 | L.H. AIR OUTLET PLATE -Valid for GD- | 1 |
| 14 | 65018200 | R.H. AIR OUTLET PLATE -Not for GD- | 1 |
| 14 | 65891100 | R.H. AIR OUTLET PLATE -Valid for GD- | 1 |
| 15 | 696595 | MOULDING FOR WINDSCREEN AIR PLATE -Not for GD- | 1 |
| 15 | 696596 | MOULDING FOR WINDSCREEN AIR PLATE -Valid for GD- | 1 |
| 16 | 684217 | DASH BOARD | 1 |
| 17 | 67796610 | UPPER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 17 | 68648300 | UPPER CENTRALPLATE -Optional- -Carbon version- | 1 |
| 18 | 67797010 | ER CENTRALPLATE -Standard- -PPG236411 col sm.met.gr.opaco W 682- | 1 |
| 18 | 68648400 | ER CENTRALPLATE -Optional- -Carbon version- | 1 |
| 19 | 80728900 | CUSTOMER PLATE -Optional- -Valid after stock exhaustion of 69119900- | 1 |
| 19 | 69119900 | CUSTOMER PLATE -Optional- -Valid till stock exhaustion- | 1 |
| 19 | 68872700 | CAR MODEL PLATE -Optional- -Carbon- | 1 |
| 19 | 68719900 | CAR MODEL PLATE -Standard- | 1 |
| 20 | 68927600 | SCREW -Black- | 4 |
| 20 | 64214100 | SCREW -Selfblocking- | 4 |
| 21 | 68615200 | BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Not for GD- | 1 |
| 21 | 69074200 | BOX AMPLIFIER FIXING BRACKET -Optional- -Valid for cars with amplifier- -Valid for GD- | 1 |
| 22 | 16285127 | SCREW -Optional- -Valid for cars with amplifier- | 2 |
| 23 | 68135000 | L.H. SIDE AIR OPENING GASKET | 1 |
| 23 | 68134900 | R.H. SIDE AIR OPENING GASKET | 1 |
| 24 | 68662200 | CAR RADIO FRAME | 1 |
| 25 | 14304021 | SCREW | 4 |
| 26 | 12637824 | WASHER | 4 |
| 27 | 12620374 | WASHER | 4 |
| 28 | 69140100 | CUSTOMER PLATE SUPPORT | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
