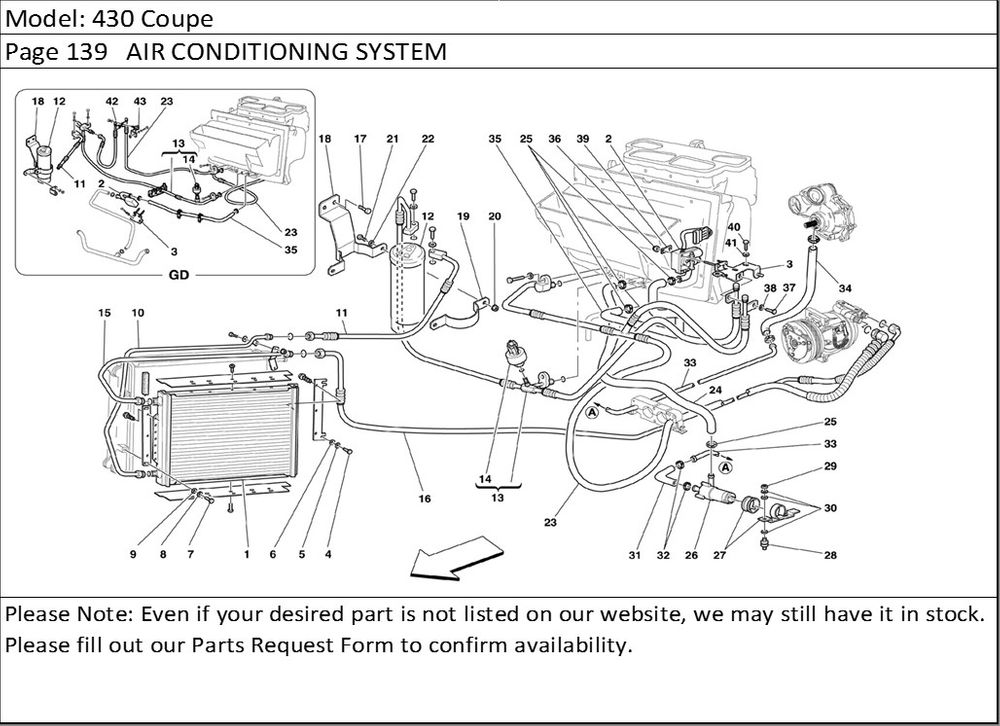

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 200340 | A.C. CONDENSER | 1 |
| 2 | 65066400 | TGK VALVE | 1 |
| 3 | 66150300 | BRACKET FOR VALVE FIXING -Not for GD- | 1 |
| 3 | 68643100 | BRACKET FOR VALVE FIXING -Valid for GD- | 1 |
| 4 | 10902124 | SCREW | 3 |
| 5 | 12601274 | WASHER | 3 |
| 6 | 14496424 | WASHER | 3 |
| 7 | 60909500 | SCREW | 1 |
| 8 | 12601274 | WASHER | 1 |
| 9 | 12643724 | WASHER | 1 |
| 10 | 80668700 | DELIVERY METAL PIPE | 1 |
| 11 | 67750800 | HOSE FROM CONDENSER TO FILTER | 1 |
| 12 | 67085100 | DEHYDRATING FILTER | 1 |
| 13 | 67750900 | PIPE FROM FILTER TO A.C. SYSTEM -Not for GD- | 1 |
| 13 | 68640900 | PIPE FROM FILTER TO A.C. SYSTEM -Valid for GD- | 1 |
| 14 | 65628200 | PRESSOSTAT | 1 |
| 15 | 67750500 | INLET METAL PIPE | 1 |
| 16 | 67750400 | UNDERFLOOR PIPE | 1 |
| 17 | 10902224 | SCREW | 2 |
| 18 | 67942200 | BRACKET | 1 |
| 19 | 67942200 | RING | 1 |
| 20 | 14098700 | NUT | 2 |
| 21 | 68721400 | SCREW | 2 |
| 22 | 12644424 | WASHER | 2 |
| 23 | 68640800 | PIPE FROM A.C. SYSTEM TO COMPRESSOR -Valid for GD- | 1 |
| 23 | 67750300 | PIPE FROM A.C. SYSTEM TO COMPRESSOR -Not for GD- | 1 |
| 24 | 69741700 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for GD- -Not as spare part- -Replaced by 69741700- | 1 |
| 24 | 69741700 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Not for GD- | 1 |
| 24 | 68641000 | PIPE FROM MINIMUM PUMP TO A.C. SYSTEM -Valid for GD- | 1 |
| 25 | 13000390 | SCREW COLLAR | 4 |
| 26 | 65460300 | MINIMUM PUMP | 1 |
| 27 | 68018300 | COMPLETE BRACKET | 1 |
| 28 | 195373 | PAD | 2 |
| 29 | 15896214 | NUT | 2 |
| 30 | 10571570 | WASHER | 2 |
| 31 | 65460700 | PIPE FROM UNDERFLOOR PIPE TO MINIMUM PUMP | 1 |
| 32 | 13000490 | SCREW COLLAR | 2 |
| 33 | 68393000 | TER PIPE UNDERFLOOR | 1 |
| 34 | 68237600 | PIPE FROM WATER PUMP TO UNDRFLOOR PIPE | 1 |
| 35 | 65231700 | PIPE FROM A.C. HEATER TO TGK VALVE -Not for GD- | 1 |
| 35 | 68641100 | PIPE FROM A.C. HEATER TO TGK VALVE -Valid for GD- | 1 |
| 36 | 62790300 | NUT | 2 |
| 37 | 10977524 | SCREW | 1 |
| 38 | 11188079 | WASHER | 1 |
| 39 | 65929400 | SMALL PLATE | 1 |
| 40 | 10902224 | SCREW | 2 |
| 41 | 11193274 | WASHER | 2 |
| 42 | 68863200 | PIPE CONNECTING FILTER A.C. LOADING -Valid for GD- | 1 |
| 43 | 212340 | BRACKET -Valid for GD- | 1 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
