Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

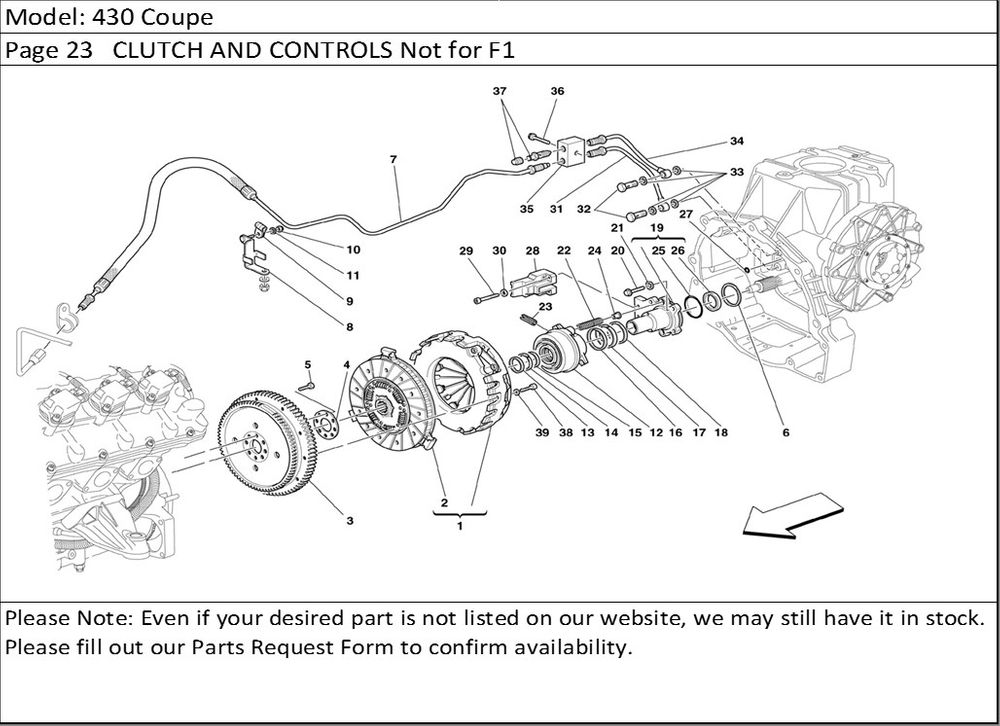

| Location in Parts Diagram | Part # | Description | Quantity Used |
|---|
| 1 | 222090 | COMPLETE CLUTCH -Not as spare part- -Replaced by 222090- | 1 |
| 1 | 222090 | COMPLETE CLUTCH | 1 |
| 2 | 222090 | CLUTCH DISC -Not as spare part now- | 1 |
| 3 | 230425 | COMPLETE ENGINE FLYWHEEL -Not as spare part- -Replaced by 230425- | 1 |
| 3 | 230425 | COMPLETE ENGINE FLYWHEEL | 1 |
| 4 | 103876 | FLYWHEEL FIXING WASHER | 1 |
| 5 | 201755 | SCREW | 8 |
| 5 | 103875 | SCREW -Not as spare part now- -Replaced by 201755- | 8 |
| 6 | 173360 | SPACER -Possible fitting- | 2 |
| 7 | 207386 | CLUTCH CONTROL HOSE -Valid till car Ass. Nr. 58632- | 1 |
| 7 | 219377 | CLUTCH CONTROL HOSE -Valid from car Ass. Nr. 58633- | 1 |
| 8 | 178342 | PIPES FIXING BRACKET | 1 |
| 9 | 10440990 | BRACKET WITH SHEATH | 1 |
| 10 | 102741 | NUT | 1 |
| 11 | 10730114 | SHER | 1 |
| 12 | 234943 | THRUST BEARING -Valid till Ass. Nr. 75199- -Valid till stock exhaustion- | 1 |
| 12 | 234943 | THRUST BEARING -Valid from Ass. Nr. 75200- -Valid after stock exhaustion of 208310- | 1 |
| 13 | 172970 | SCRAPER RING | 1 |
| 14 | 208014 | RING | 1 |
| 15 | 172972 | SEAL RING | 1 |
| 16 | 154508 | SEAL RING | 1 |
| 17 | 154507 | RING | 1 |
| 18 | 154551 | SCRAPER RING | 1 |
| 19 | CRF360/430 | COMPLETE BEARING SUPPORT FLANGE | 1 |
| 20 | 16052024 | SCREW | 2 |
| 21 | 12601374 | SHER | 2 |
| 22 | 155207 | PRELOAD SPRING | 2 |
| 23 | 14604170 | FLEXIBLE PIN | 1 |
| 24 | 155206 | SPACER FOR SPRING | 2 |
| 25 | 136140 | O.R. GASKET | 1 |
| 26 | 172363 | SEAL RING | 1 |
| 27 | 121813 | O.R. GASKET | 2 |
| 28 | 201160 | SUPPORT | 1 |
| 29 | 14358524 | SCREW | 2 |
| 30 | 10519378 | SHER | 2 |
| 31 | 242066 | CLUTCH CONTROL TUBE | 1 |
| 31 | 180183 | CLUTCH CONTROL TUBE -Not as spare part- -Replaced by 242066- | 1 |
| 32 | 11903811 | UNION | 2 |
| 33 | 10284460 | GASKET | 4 |
| 34 | 242074 | BLEEDER SYSTEM PIPE -Not as spare part- -Replaced by 242074- | 1 |
| 34 | 242074 | BLEEDER SYSTEM PIPE | 1 |
| 35 | 235706 | BLOCK -Valid from Ass. Nr. 72730- -Replaces 196918- | 1 |
| 35 | 235706 | BLOCK -Valid till Ass. Nr. 72729- -Not as spare part- -Replaced by 235706- | 1 |
| 36 | 16286324 | SCREW | 1 |
| 37 | 121699 | BLEEDER SCREW -Valid till Ass. Nr. 72729- -Not as spare part- -Replaced by 152954- | 1 |
| 37 | 152954 | BLEEDER SCREW -Valid from Ass. Nr. 72730- -Replaces 121699- | 1 |
| 38 | 204385 | SCREW | 9 |
| 39 | 11194379 | SHER | 9 |
| 14 | 65520000 | FRONT FIXING BRACKET | 4 |
| 15 | 10902024 | SCREW | 8 |
| 16 | 12640677 | WASHER | 8 |
| 17 | 140594 | REAR SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 17 | 147563 | FRONT SIDE-MARKER LAMP -Valid for USA and CDN | 2 |
| 18 | 65164700 | HEADLIGHTS WASHER PUMP -Valid for cars with headlights washer | 1 |
| 19 | 65511700 | GASKET -Valid for cars with headlights washer | 1 |
| 20 | 65363000 | HEADLIGHTS WASHER PIPE ASSEMBLY -Valid for cars with headlights washer | 1 |
| 21 | 65380000 | HEADLIGHTS WASHER FIXED BODY -Valid for cars with headlights washer | 2 |
| 22 | 65380100 | L.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 22 | 65667200 | R.H. HEADLIGHTS WASHER MOBILE BODY -Valid for cars with headlights washer | 1 |
| 23 | 15517201 | SCREW -Valid for cars with headlights washer | 6 |
| 24 | 65896600 | R.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 24 | 65896700 | L.H. SUPPORT -Valid for cars with headlights washer | 1 |
| 25 | 65896400 | R.H. PLUG -Valid for cars with headlights washer | 1 |
| 25 | 65896500 | L.H. PLUG -Valid for cars with headlights washer | 1 |
| 26 | 10441590 | BRACKET -Valid for cars with headlights washer | 4 |
| 27 | 14296191 | RIVET -Valid for cars with headlights washer | 4 |
| 28 | 65161700 | L. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 28 | 65161500 | R. H. FRONT SIDE LIGHT SUPPORT | 1 |
| 29 | 10902424 | SCREW | 2 |
| 30 | 116413 | WASHER | 2 |
| 31 | 63234200 | SCREW | 2 |
| 32 | 12646801 | WASHER | 2 |
| 33 | 185378 | CLIP | 3 |
| 34 | 183672 | BULB -For gas lamps | 2 |
| 35 | 65705600 | L.H. BRACKET -For gas lamps | 1 |
| 35 | 65705500 | R.H. BRACKET -For gas lamps | 1 |
| 36 | 65705400 | BRACKET -For gas lamps | 2 |
| 37 | 185554 | FRONT LIGHT CONTROL STATION -For gas lamps | 2 |
| 38 | 155751 | CLIP -Valid for USA and CDN | 4 |
| 39 | 14084111 | NUT -Valid for USA and CDN | 8 |
| 40 | 12638124 | WASHER -Valid for USA and CDN | 8 |
| 41 | 66120200 | INSULATION | 1 |
| 42 | 14190190 | NUT WITH CAGE | 2 |
| 43 | 64529600 | SPACER | 8 |
| 4 | 66325702 | Description not available | |
| 4 | 67259102 | Description not available | |
| 4 | 66325725 | Description not available | |
| 4 | 67259127 | Description not available | |
