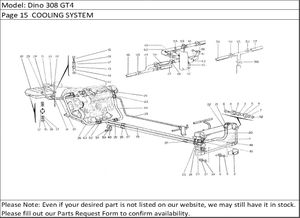

Page 15 COOLING SYSTEM

Dino 308 GT4 Page 15  COOLING SYSTEM


Click On Diagram To Enlarge


Dino 308 GT4 Page 15 COOLING SYSTEM

Click on part number below to order. If unable to click on part number please fill out and submit Parts Request Form below to order.

Location in Parts DiagramPart #DescriptionQuantity Used
-100507Fascetta8
1107759Radiiitore acquaNon vale per USA - AUS - J e tiopico1
2107782Spessore gomma antivibrante2
4107979Scodellino4
616043821Bullone2
8101188Rubinetto scarico acqua1
10106728Nourice per radiatore1
12102947Supporto anlivibrante1
14103550Distanziale2
1616132921Vite2
1810516477Rondella3
20107521Tubo anteriore per mandata al rad.Per GD vale n. 1074551
21102956Manicotto1
23102957Manicotto5
25106680Tubo centraie per mandataPer GD vale n. 1066771
26107465Manicotto antivibrante1
28106681Tubo sfiato colleg. motore-nourice1
30106682Tubo alimentazione dalla nourice al motore1
32106683Tubo sfiato1
34106690Tubo posteriore Sx.Per GD vale n. 1074661
35108042Tubo posteriore Dx.Per GD vale n. 1080531
36106306Tubo fra le teste1
38101508Guarnizione1
40107002Fascetta2
42110067Stafta fissaggio rubinulto1
44109376Tre vie sul rubinetto1
46110276Tubo al riscaldatore Dx.1
48112493Tubo al tre vie1
5112574221Dado1
5312643701Rondella1
55104303Tre vie1
57112492Tubo dal riscaldatore Sx. al 3 vie1
59110106Vite2
61108501Tubetto di giurizione1
6312174090Fascetta4
